| Spesification | |
|---|---|
| Model | IR-TP200-L5-INT |
| Applicable control cabinet | IRCB501 Series-INT IRCB501 High-Protection Series-INT |
| Display | 7-inch TFT LCD screen |
| Resolution | 800?480 |
| Panel | 4-wire resistive touchscreen, 22 function keys |
| Processor | MCU Cortex-A7 Quad-core 1.2 GHz |
| Storage | RAM: 512 MB DDR3L, ROM: 512 MB |
| Communication | USB Host: USB 2.0 (Type A) Ethernet: 1 x 10/100M Auto-negotiation |
| Power supply | Controller rated voltage: 24 VDC Input voltage range: 24 VDC ?20% |
| Electrical components | Position enable switch, emergency stop button, three-position key switch, wheel |
| Protection level | IP54, IP54 not met if USB plug is removed or not securely inserted |
| Storage temperature/humidity | -25?C to +55?C, <95% RH (30?C) |
| Operating temperature and humidity | -25?C to +70?C, ?95% RH (40?C) |
| Cable length | 5m (standard) |

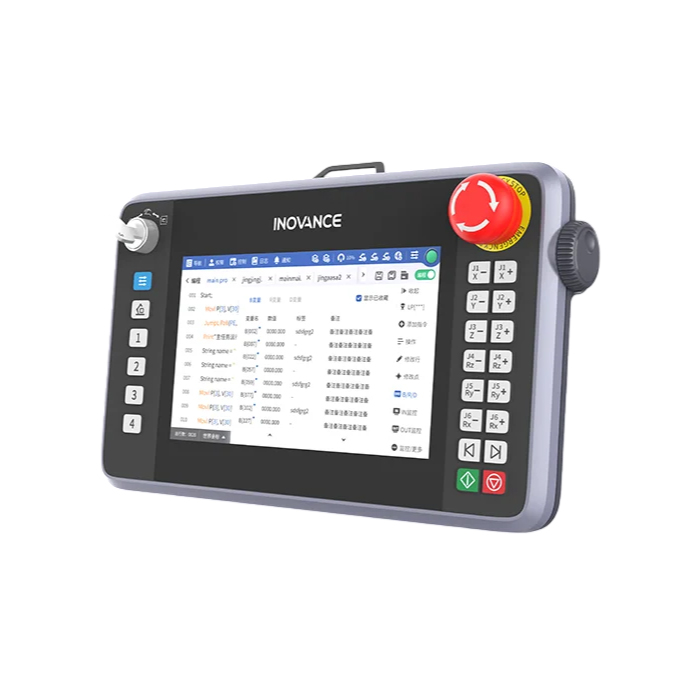

IR-TP200-Series-Robot-Teach-Pendant
The IR-TP200 robot teach pendant is a matching teach pendant for the IRCB501 series controllers. It features an integrated front panel and an efficient plug-and-play system, supporting both touchscreen and physical button operations to ensure a comfortable grip and simple operation. It offers comprehensive functions, including parameter configuration, teaching programming and operation, as well as variable and I/O monitoring. Its wizard-guided command modification enables rapid editing and replacement for ultimate programming efficiency. Compatible with various robot types such as 6-axis, SCARA, and Delta models, it integrates multiple application processes like vision calibration, handling and palletizing, and conveyor tracking to meet diverse operational needs.
