| Spesification | |
|---|---|
| Model | IRCB501-2PN-BD |
| Applicable control cabinet | IRCB501 Series-INT IRCB501 High-Protection Series-INT |
| Ambient temperature and humidity | Temperature: 0?C to 45?C Humidity: 20% RH to 95% RH (30?C), non-condensing |
| Storage temperature and humidity | Temperature: ?10?C to +60?C Humidity: < 95% RH (30?C), non-condensing |
| PROFINET port | Number of ports: 2 Switch feature: Supported |
| Function | PROFINET IO device; media redundancy supported |
| Transmission media | Shielded Cat5e or better cable |
| Transmission distance | Less than 100 m between two nodes (with proper environment and cables) |
| Topology structure | Ring, linear, star, and tree |
| Communication protocol | PROFINET protocol |
| Process data | RT |
| Bus cycle | RT mode: Minimum 2 ms |
| Physical layer | 100Base-TX |
| Baud rate | 100 Mbps (100Base-TX) |
| Duplex mode | Full duplex |
| I&M data | I&M0 to I&M5 |
| Alarm/Diagnosis information | Supported |
| DCP CALL (device search) | Supported |
| MRP (ring network) | Supported |
| MRPD (rapidly recovering ring network) | Supported |
| PROFINET system redundancy | Not supported |
| Boot priority | Supported |
| Port disabling | Supported |
| Configuration-free upon device change | Supported |

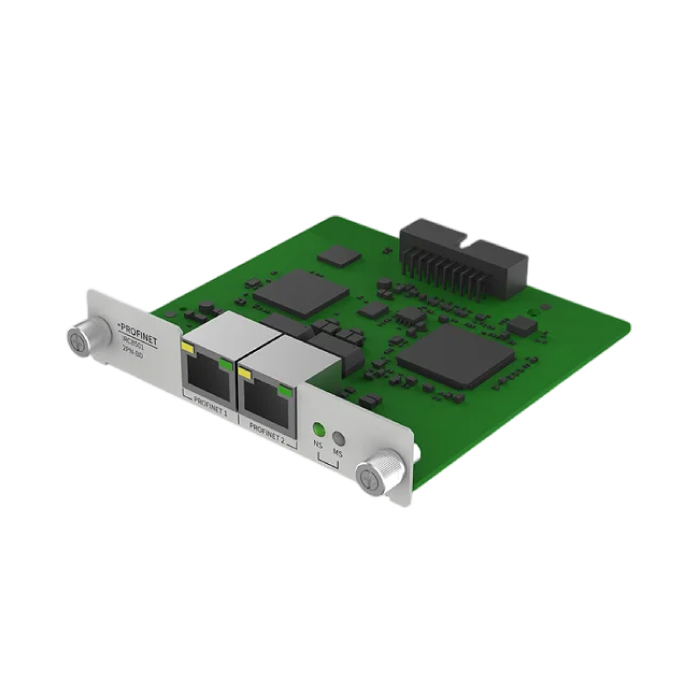

PROFINET-Slave-Expansion-Card
An expansion card designed based on the PROFINET protocol for communication with a PROFINET master station to enable real-time data transmission and remote equipment monitoring and control.
