| Spesification | |||
|---|---|---|---|
| Robot version | Diameter | Payload (g) | No. Axes |
| IRB 365-1.5/800 | 800 | 1.5 | 5 |
| IRB 365 1.5/1100 | 1100 | ||
| IRB 365-1.5/1300 | 1300 | ||
| Supplementary load | on upper arm | 0.35 kg | |
| on lower arm | 0.35 kg | ||
| Protection | IP54 | ||
| Mounting | Inverted | ||
| Controller | OmniCore C30 | ||
| Performance (According to ISO 9283) | |||
| IRB 365-1.5/800 IRB 365 1.5/1100 IRB 365-1.5/1300 |
|||
| Pose repeatability, RP [mm] | 0.05 | ||
| Pose stabilization time, PSt [s] within 0.1 mm of the position |
0.34 | ||
| Cycle times | |||
| 0.5 kg | 1.0 kg | 1.5 kg | |
| 25/305/25 (mm) cycle | |||
| IRB 365-1.5/800 | 0.42 | 0.45 | 0.48 |
| IRB 365 1.5/1100 | 0.42 | 0.45 | 0.48 |
| IRB 365-1.5/1300 | 0.45 | 0.48 | 0.51 |
| 90/400/90 mm cycle | |||
| IRB 365-1.5/800 | 0.61 | 0.66 | 0.71 |
| IRB 365 1.5/1100 | 0.61 | 0.65 | 0.70 |
| IRB 365-1.5/1300 | 0.68 | 0.72 | 0.76 |
| Physical | |||
| IRB 365-1.5/800 IRB 365 1.5/1100 IRB 365-1.5/1300 |
|||
| Weight | 86 kg | ||
| Environment | |||
| Ambient temperature | Manipulator 0? C to +45? C Relative humidity Max. 90 % | ||
| Noise level | < 59 dB(A) | ||
| Hygienic Attributes | |||
| Food grade lubrication | Gearbox oil Grease behind exposed seals | ||

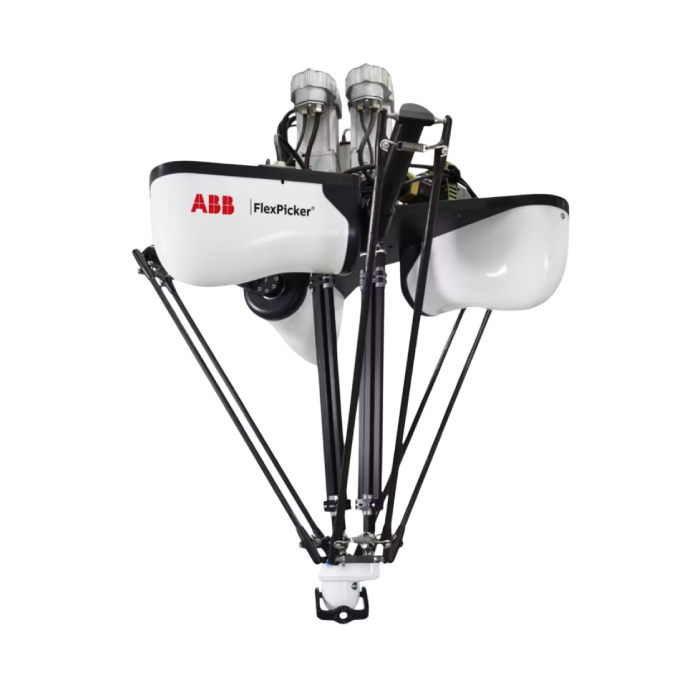

IRB-365
The fastest in their class
With the same five axes and 1.5kg payload, the three variants (800mm, 1100mm, 1300mm) of IRB 365 FlexPicker? Delta robot are flexible and the fastest in their class for reorientating packaged lightweight products such as cookies, chocolates, peppers, candies, small bottles, and parcels.
