| Spesification | |
|---|---|
| Model | IRCB501-0016ETND-BD |
| Applicable control cabinet | IRCB501 Series-INT IRCB501 High-Protection Series-INT |
| Number of output channels | 16 |
| Output connection mode | Crimp terminal |
| Output type (connection mode) | Sink (NPN) |
| Y0 to Y15 input voltage range | 0V DC ~ 29V DC |
| Maximum drive current per channel | 0.4A |
| Y-COM voltage at ON (V[Y-COM]) | < 1V |
| Maximum leakage current at OFF | < 200?A |
| Maximum output switching frequency | 1 kHz (resistive load) |
| Protection | Current limiting protection |
| Isolation mode | Photocoupler isolation |
| Hardware response time (ON/OFF) | 35?s (OFF->ON) / 35?s (ON->OFF) |
| Ambient temperature and humidity | Temperature: 0?C to 45?C Humidity: 20% RH to 95% RH (30?C), non-condensing |
| Storage temperature and humidity | Temperature: ?10?C to +60?C Humidity: < 95% RH (30?C), non-condensing |

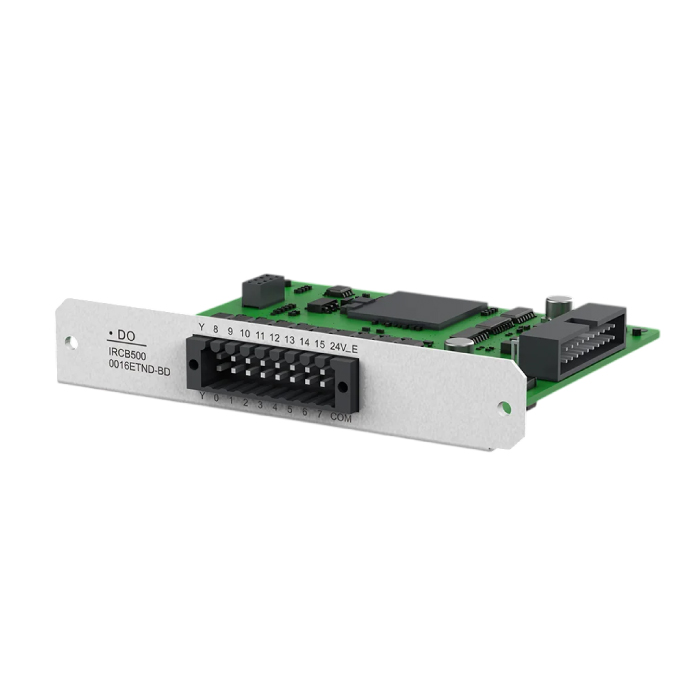

I-O-Expansion-Card
An expansion card for physical I/O wiring, designed to add digital input and output ports.
