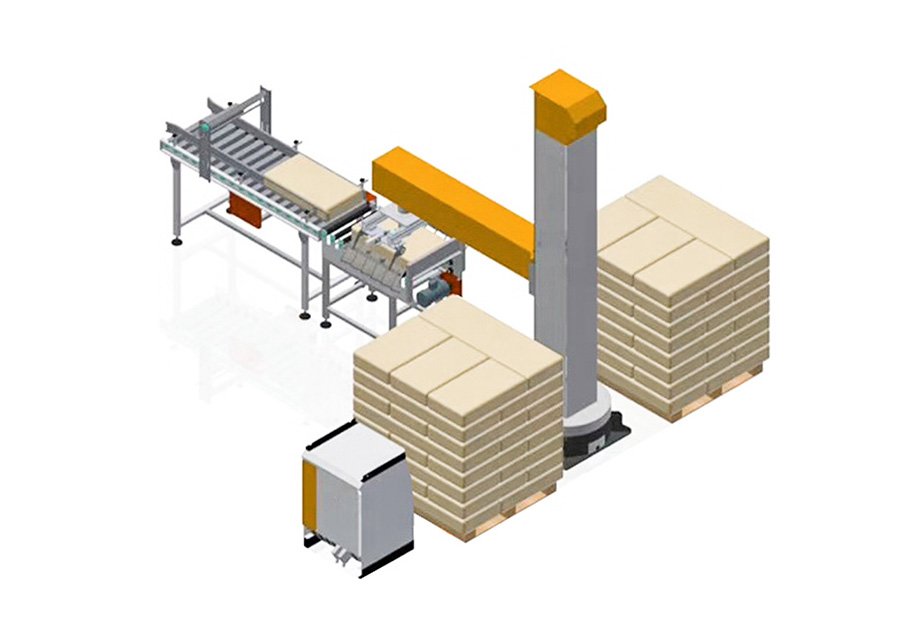

Single Column Palletizer YPK-JMD20

Single Column Palletizer YPK-JMD20

Single Column Palletizer YPK-JMD20

The single-column palletizing robot is mainly used for whole-layer palletizing at the back end of production lines in beer, beverage, pharmaceutical and other industries. It has 3 degrees of freedom, namely vertical movement, horizontal movement and vertical rotation.

Categories: ,

Key features:

  1. The whole machine is controlled by PLC, fully automatic operation;
  2. Low-position into the box, occupying less space and large production capacity;
  3. Action coordination, smooth and accurate movement, high grasping precision;
  4. The energy consumption is low, the load is large, and the operation is simple;
  5. Multiple pallets can be palletized at the same time;
  6. Meet the palletizing needs of related products such as cartons, plastic barrels, iron barrels, woven bags, plastic baskets, etc.

Video:

Technical Parameter
Model YPK-JMD20
Power supply 3Phase，380V, 50/60HZ,5KW
Air pressure 0.5-0.7Mpa
Machine size R2000*H4000mm
Mechanical arm burden ＜100kg
Pallet size 1000-1200*1000-1200*120-150mm
Packing speed 8-10cycles/min
Stacking height 1800mm(From the ground)
