| Spesification | |
|---|---|
| Model | IRCB501-FS-01-BD |
| Applicable control cabinet | IRCB501 Series-INT IRCB501 High-Protection Series-INT |
| DI Terminal Specifications | |
| Number of channels | 16 (X0A to X7A, and X0B to X7B) |
| Input mode | Source (PNP) |
| Maximum input voltage | 30V |
| Input impedance | > 4k? |
| Input voltage when input is ON | 18V DC ~ 30V DC |
| Input voltage when input is OFF | 0V DC ~ 3V DC |
| Hardware response time | ON/OFF: 250?s/250?s |
| Frequency range | 1kHz |
| Ambient temperature and humidity | Temperature: 0?C to 45?C Humidity: 20% RH to 95% RH (30?C), non-condensing |
| Storage temperature and humidity | Temperature: ?10?C to +60?C Humidity: < 95% RH (30?C), non-condensing |
| DO Terminal Specifications | |
| Number of channels | 10 (Y0A to Y4A, and Y0B to Y4B) |
| Output mode | Sink (NPN) |
| Hardware response time | < 250 ?s (OFF to ON)/250 ?s (ON to OFF) |
| Operating voltage range | 0 VDC to 29 VDC |
| Frequency range | 1kHz |
| 24V_E and GND_E power supply | 24 V?20%, 0.2 A |
| Output load (resistive load) | 0.4 A/point |
| Leakage current | Maximum 350 ?A at 24 V |
| Short circuit protection | Current limiting protection (0.8 A) |

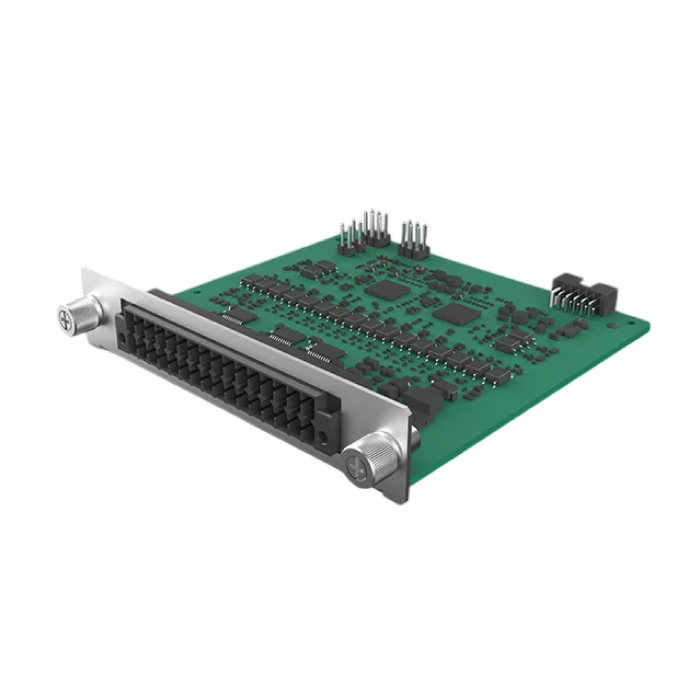

Functional-Safety-Expansion-Card
A device or component used to enhance the functional safety of industrial robots by expanding the robot’s input/output (I/O) interfaces to incorporate additional safety features.
